Ford 9 Inch
Rear Ends
$6,875.00

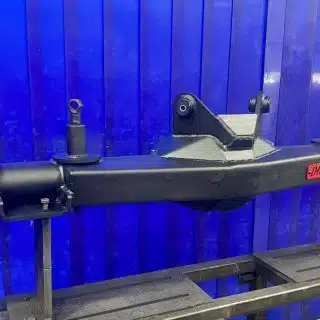

Our Ford 9 inch is 100% new top to bottom. We start with a true ¼” thick center housing and add 3” OD ½” wall DOM axle tubes that are internally gusseted to the center housing. The housing is outfitted with CNC machined billet housing ends/axle saver to house the massive Moser 40 spline hobby stock axle shafts with bronze bushings. A new 3.25″ big bearing nodular center section is assembled with 35 spline big pinion PRO ring and pinion, spool and pinion brake yoke. A full truss brace, top brace and back brace are added to this housing to provide complete protection. Fabrication is rounded out with precision jigged ¾” upper trailing arm ears, HD lower mounts, threaded coil spring perches and pinion brake.
Rear-end comes to you filled with fluid, broken-in and ready for punishment
Let’s face it, rear-ends take an enormous amount of abuse during a demolition derby and are a main target of your competitors on the track.
Our mission is to set you up with an extremely durable, low maintenance engineered assembly that can take the punishment time and time again to help you get to victory.
After final assembly, all rear-ends undergo a full break in procedure so that they are ready for punishment.
All rear-ends can be upgraded or downgraded depending on your specific needs.
All rear-ends are built to order. A deposit is required to get a spot in line for your build. All prices shown include a core charge. Core charge can be refunded if a good usable core is provided.
Let’s face it, rear ends take an enormous amount of abuse during a demolition derby and are a main target of your competitors on the track.
Our mission is to set you up with an extremely durable, low maintenance engineered assembly that can take the punishment time and time again to help you get to victory.
After final assembly, all rear ends undergo a full break in procedure so that they are ready for punishment.
All rear ends can be upgraded or downgraded depending on your specific needs.
All rear ends are built to order. A deposit is required to get a spot in line for your build. All prices shown include a core charge. Core charge can be refunded if a good usable core is provided.
