Name: Swivel Coil Spring Perches
SKU: SWIVEL-PERCHES
Availability: InStock

Home / Shop / Rear End Parts / Swivel Coil Spring Perches

$265.00

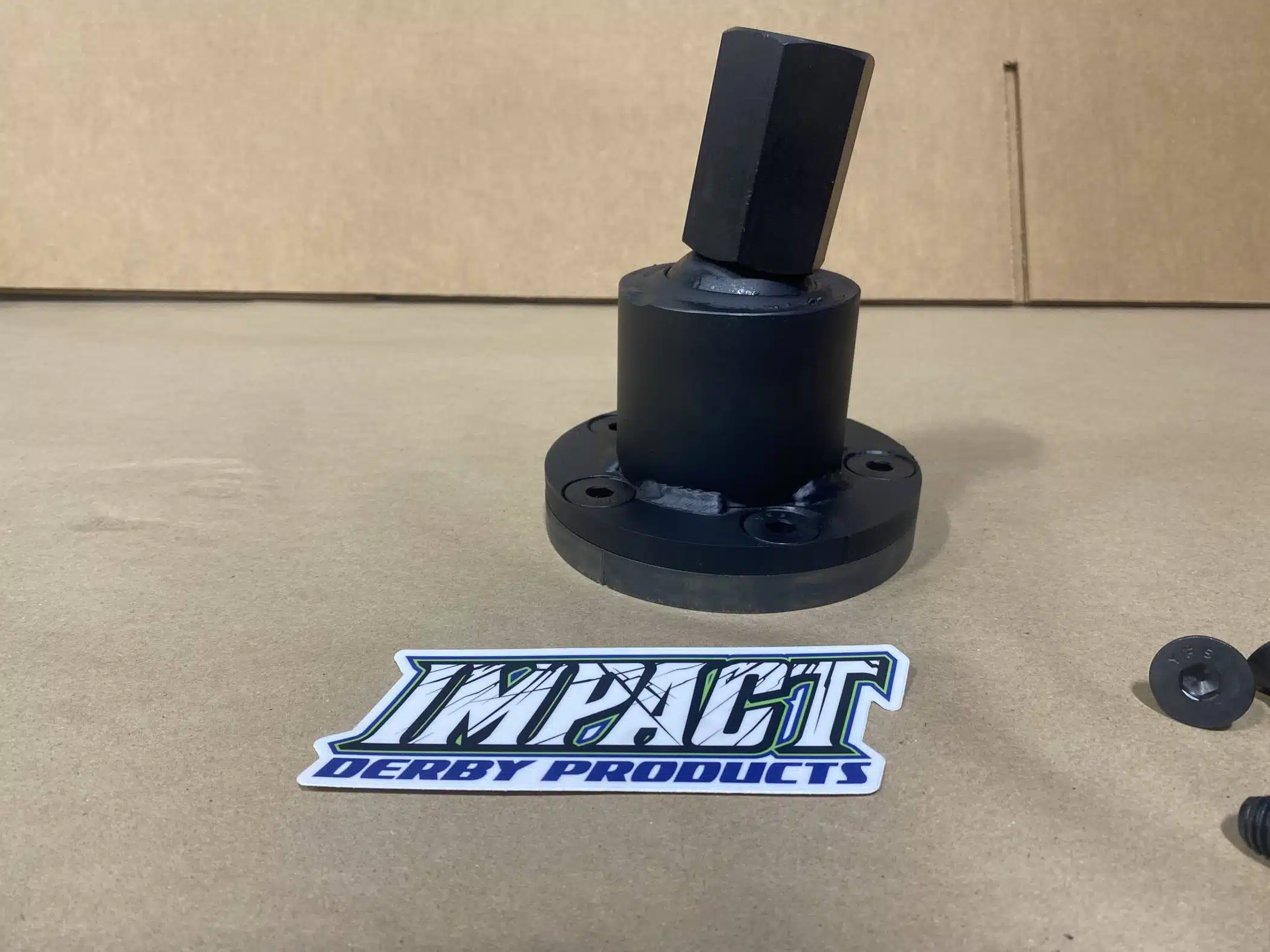

Unique design of our swivel spring perch allows misalignment between the spring perch and the package tray mount location for your all thread. This allows you to set your ride height and have solid suspension without binding the all thread. Binding of your all thread can cause bending, fracturing and stripped threads. This design also allows some movement/pivot of your all thread as the car bends to prevent breakage.

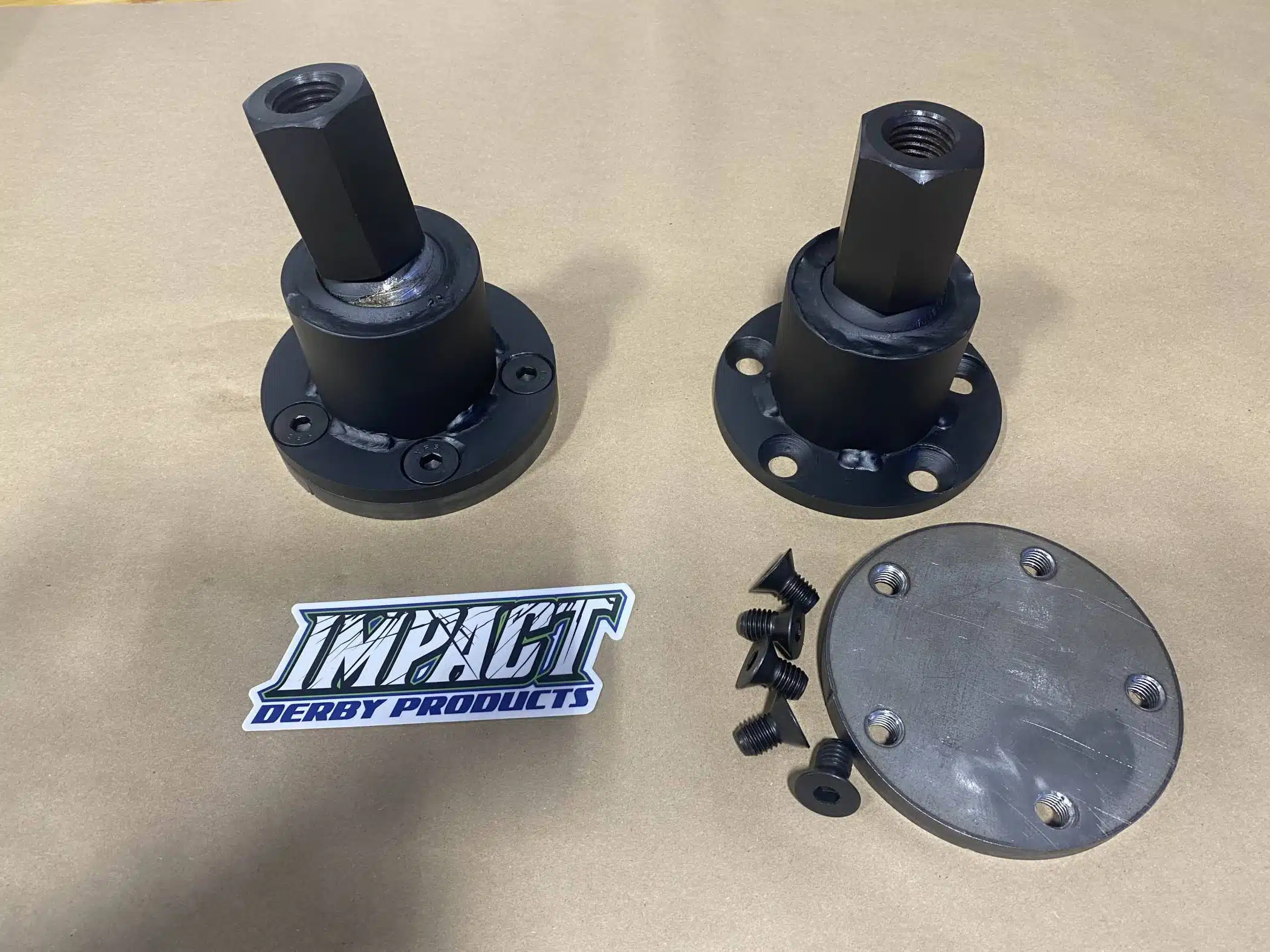

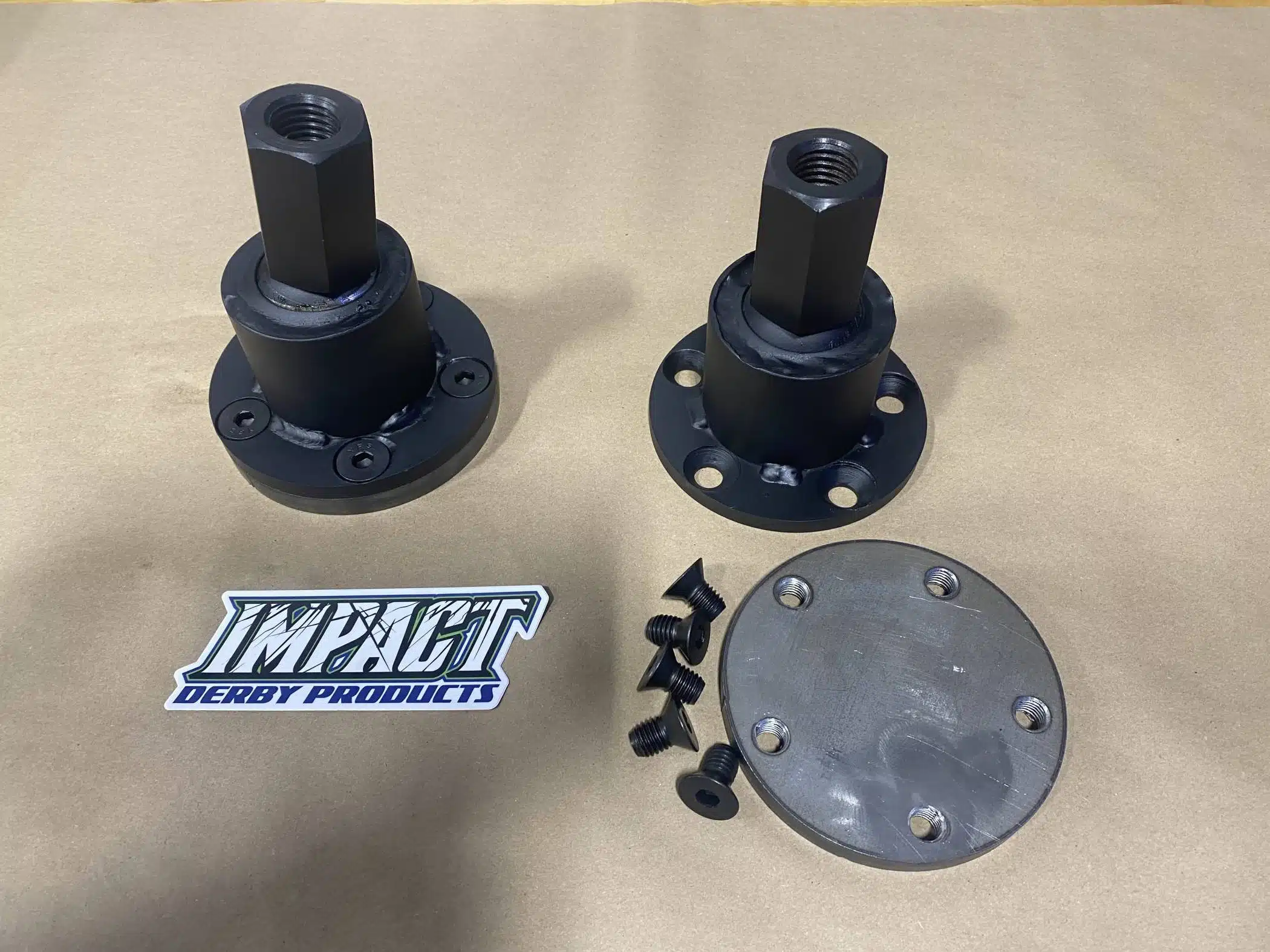

Bolt together design is fully serviceable once welded to the rear end
Accepts 1″ all thread
10 degrees of pivot in all directions
3″ tube diameter fits most spring combinations
Case hardened pivot components for durability and impact strength

SKU: SWIVEL-PERCHES Category: Rear End Parts

If you are allowed to use threaded rod for solid rear suspension you need a place to mount it on your rear end. Our threaded spring perches allow you to run your threaded rod through the center of your coil spring to the suspension tray where there is typically an existing hole to mount to. This captures your spring so it cannot fall out and allows you to set your ride height. If you cannot run solid suspension you can still use these to hold your coil springs to the rear end with the use of a bolt and washer. This particular spring perch pivots allowing the threaded rod to articulate 10 degrees in every direction. This prevents binding and breakage of the all thread in the event that the hole on the package tray does not align with the spring perch or something moves during competition.
